Searching for Data in Inspector

1. Start with the right place

OpenSearch Dashboards usually lets you search in Discover or inside a Dashboard.

• Use Discover when you want to inspect raw records or logs.
• Use Dashboards when you want to filter charts, tables, and visual panels.

OpenSearch Dashboards supports search using DQL, short for Dashboards Query Language, and also Lucene/query string syntax. DQL is usually easier for everyday dashboard filtering.

2. Set the time range first

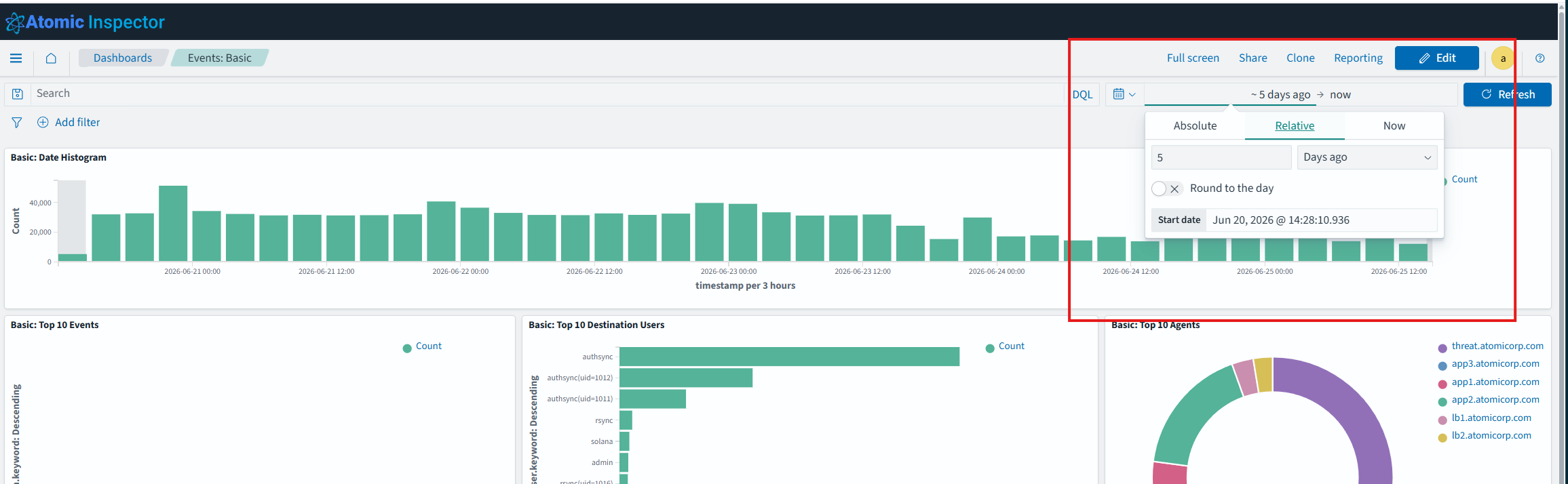

Before searching, check the time picker, usually in the top-right corner.

Examples:

• Last 15 minutes
• Last 24 hours
• Last 7 days
• Custom date range

Many “missing data” problems are caused by the wrong time range.

3. Basic search examples

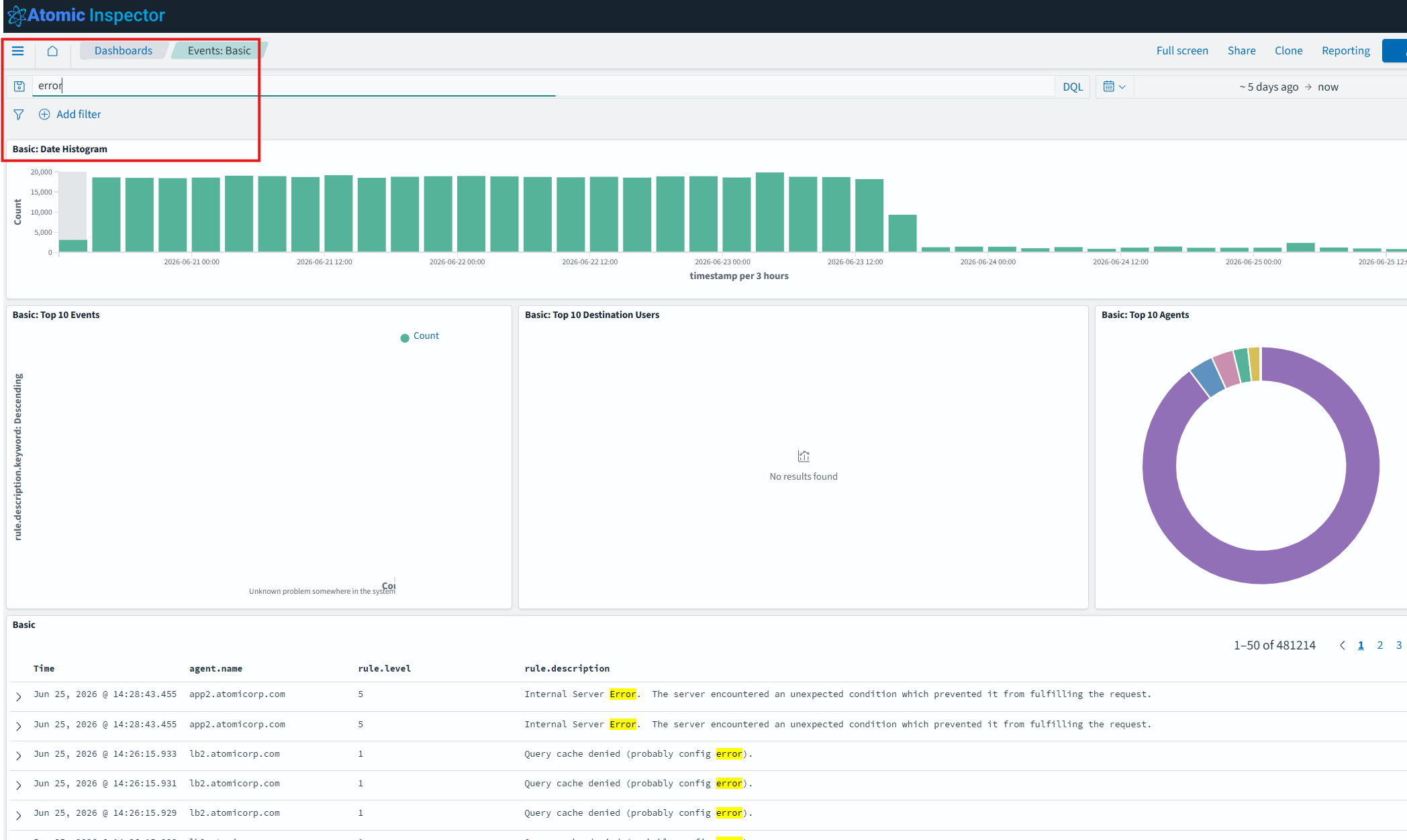

Search for a word

error

Finds records that contain error.

Search a specific field

status:500

Finds records where the status field is 500.

Search text in a field

message:error

Finds records where the message field contains error.

4. Search for exact values

Use quotation marks when the value has spaces.

service:"payment api"

message:"connection timeout"

This helps avoid partial or incorrect matches.

5. Combine searches

AND

status:500 and service:checkout

Finds records where both conditions are true.

OR

status:500 or status:503

Finds records where either condition is true.

NOT

status:500 and not service:test

Finds 500 errors but excludes the test service.

DQL supports Boolean operators such as and, or, and not.

6. Search ranges

Numbers

response_time > 1000

Finds records where response_time is greater than 1000.

status >= 400

Finds client and server errors.

Dates

Usually, use the dashboard time picker instead of typing date ranges manually.

7. Use wildcards carefully

service:auth*

Matches values like:

• auth
• auth-api
• authentication

Wildcards are useful, but they can slow searches if used too broadly.

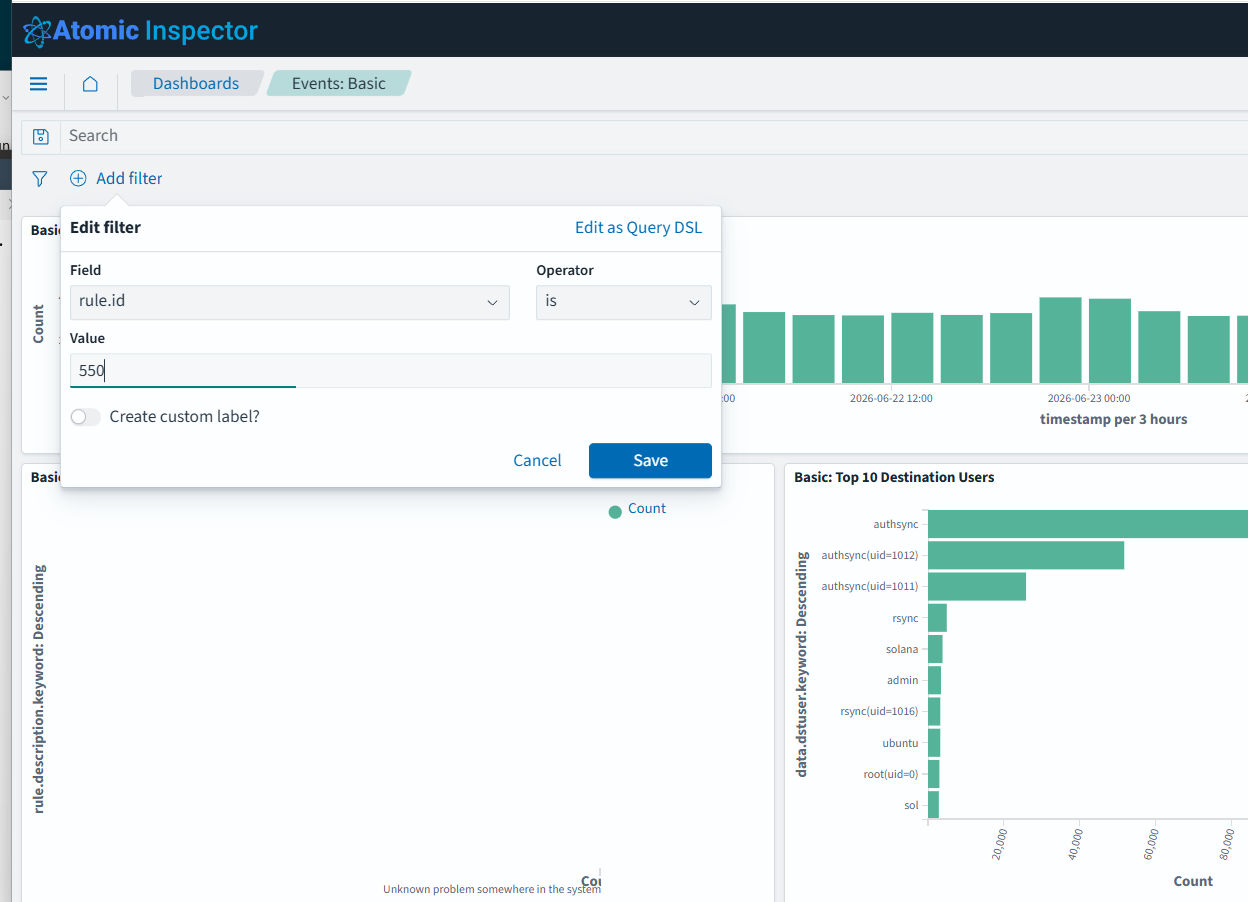

8. Add filters from the dashboard

Many dashboards let you click values in charts or tables to add filters.

Example:

1. Click a service name.
2. Choose Filter for value.
3. The dashboard refreshes using that filter.

This is often easier than typing a query manually.

9. Common useful searches

Find errors

level:error

Find failed requests

status >= 400

Find one service

service:checkout

Find timeout messages

message:timeout

Find a specific agent

agent.name:web-01

Find a request ID

request_id:"abc-123"

10. Troubleshooting

If your search returns no results, check these:

1. Time range — Is it too narrow?
2. Field name — Is the field spelled correctly?
3. Value format — Does the value need quotes?
4. Dashboard filters — Is another filter hiding results?
5. Data source/index pattern — Are you searching the right data?

11. Simple search formula

Use this pattern:

field:value

Examples:

status:500
service:api
level:error
user.name:jdoe

For multiple conditions:

field1:value1 and field2:value2

Example:

service:checkout and status >= 400

12. Best practices

• Set the time range first.
• Start broad, then narrow down.
• Use field searches instead of plain text when possible.
• Use quotes for values with spaces.
• Clear old filters before starting a new search.
• Save useful searches if your dashboard supports saved queries.
